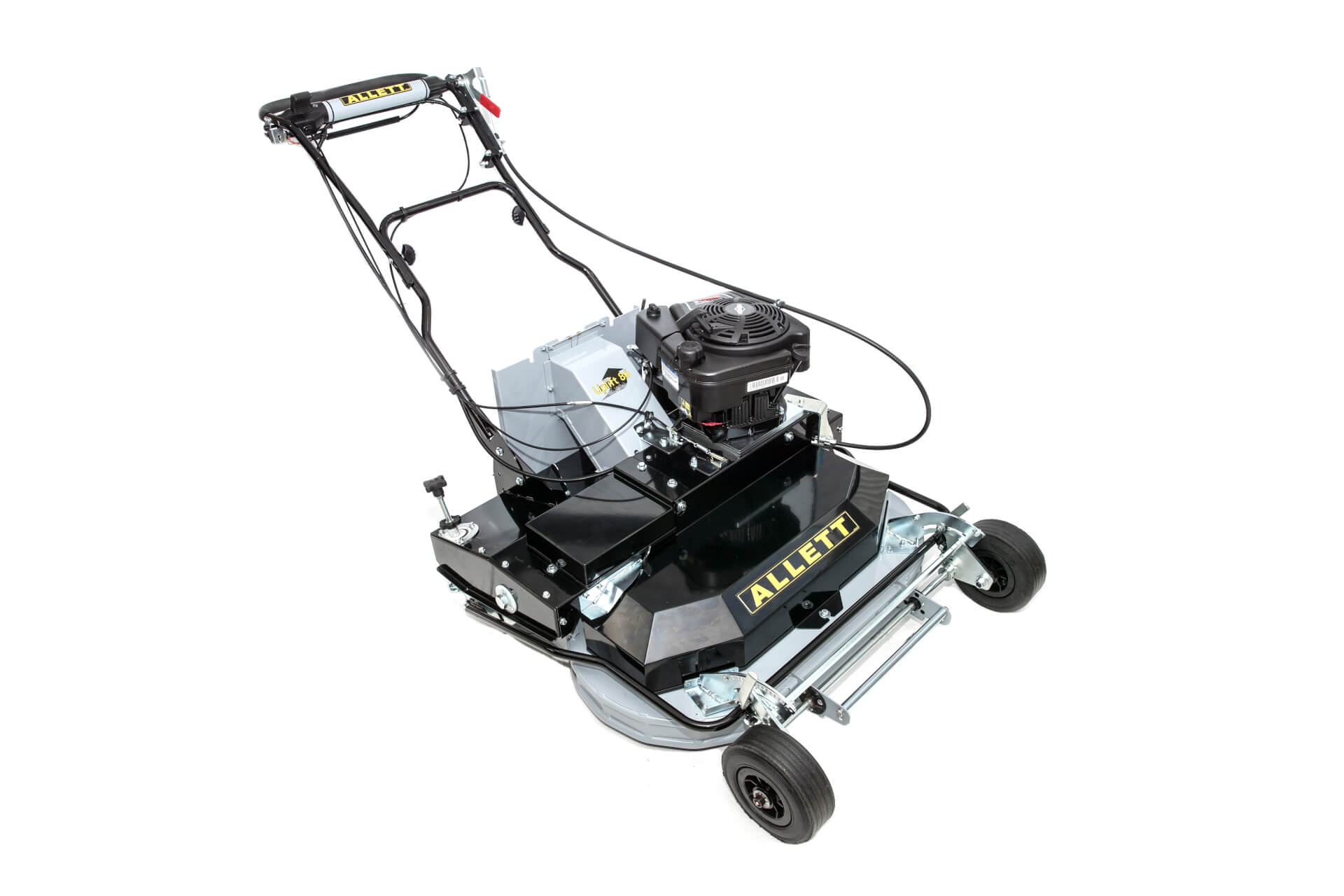

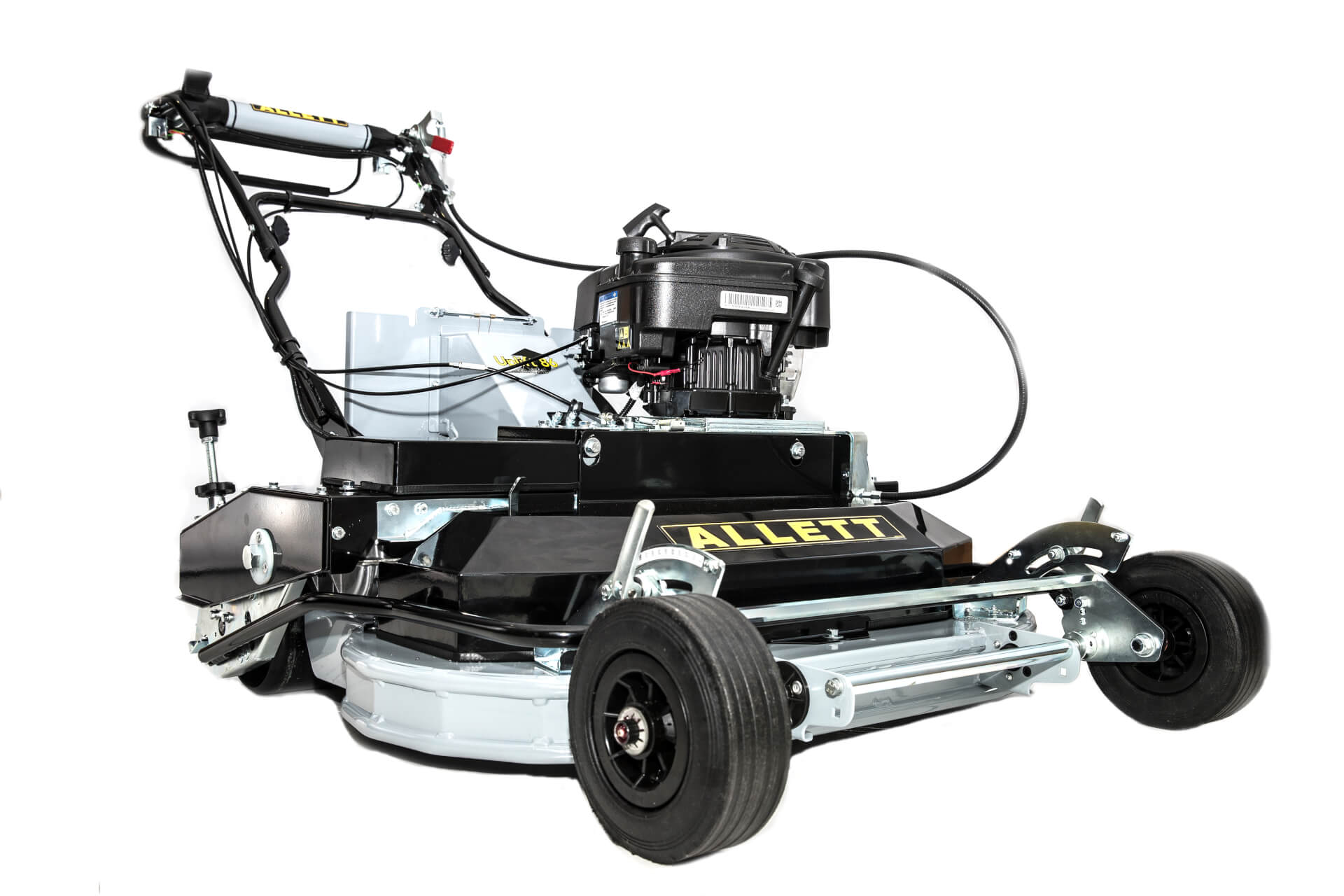

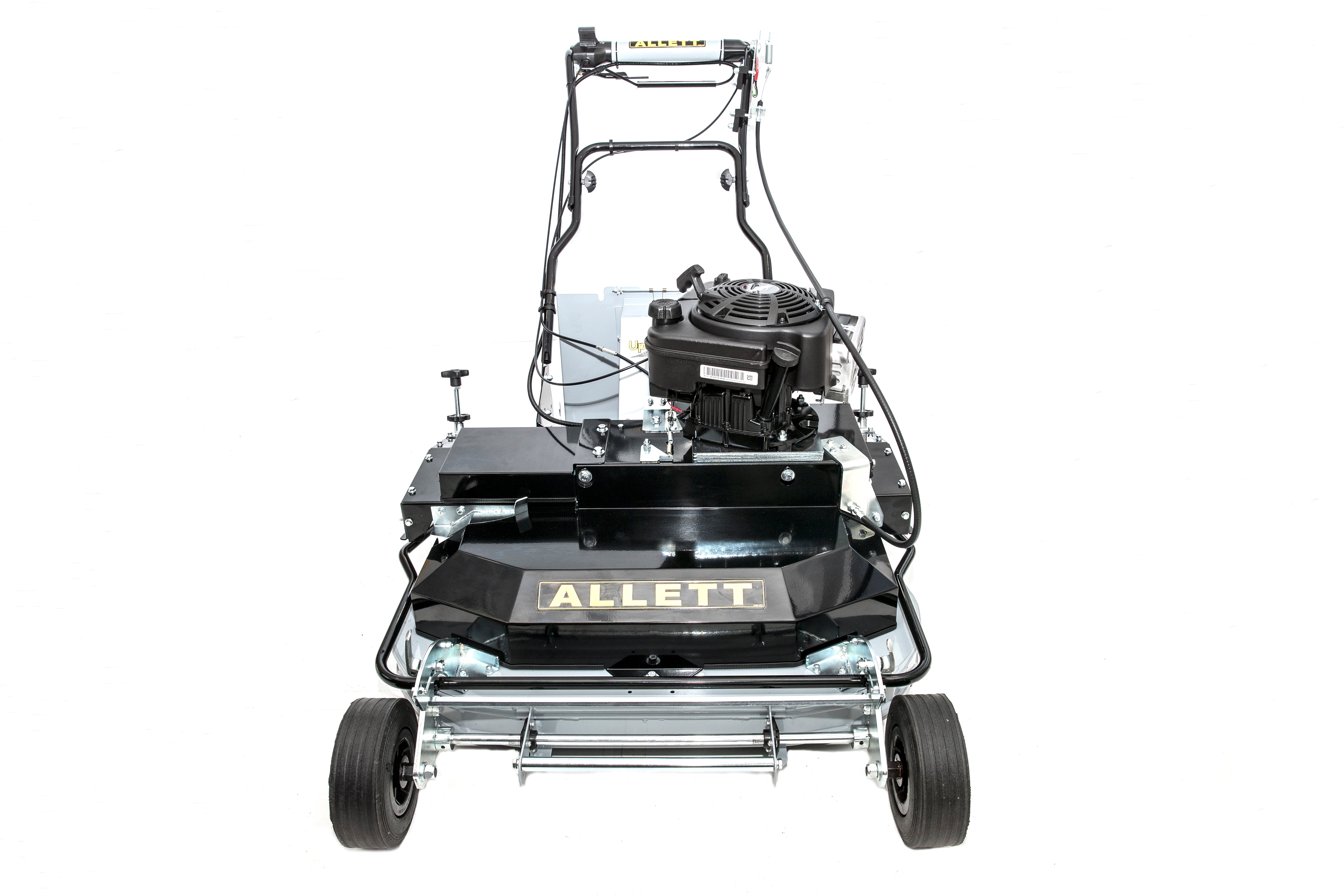

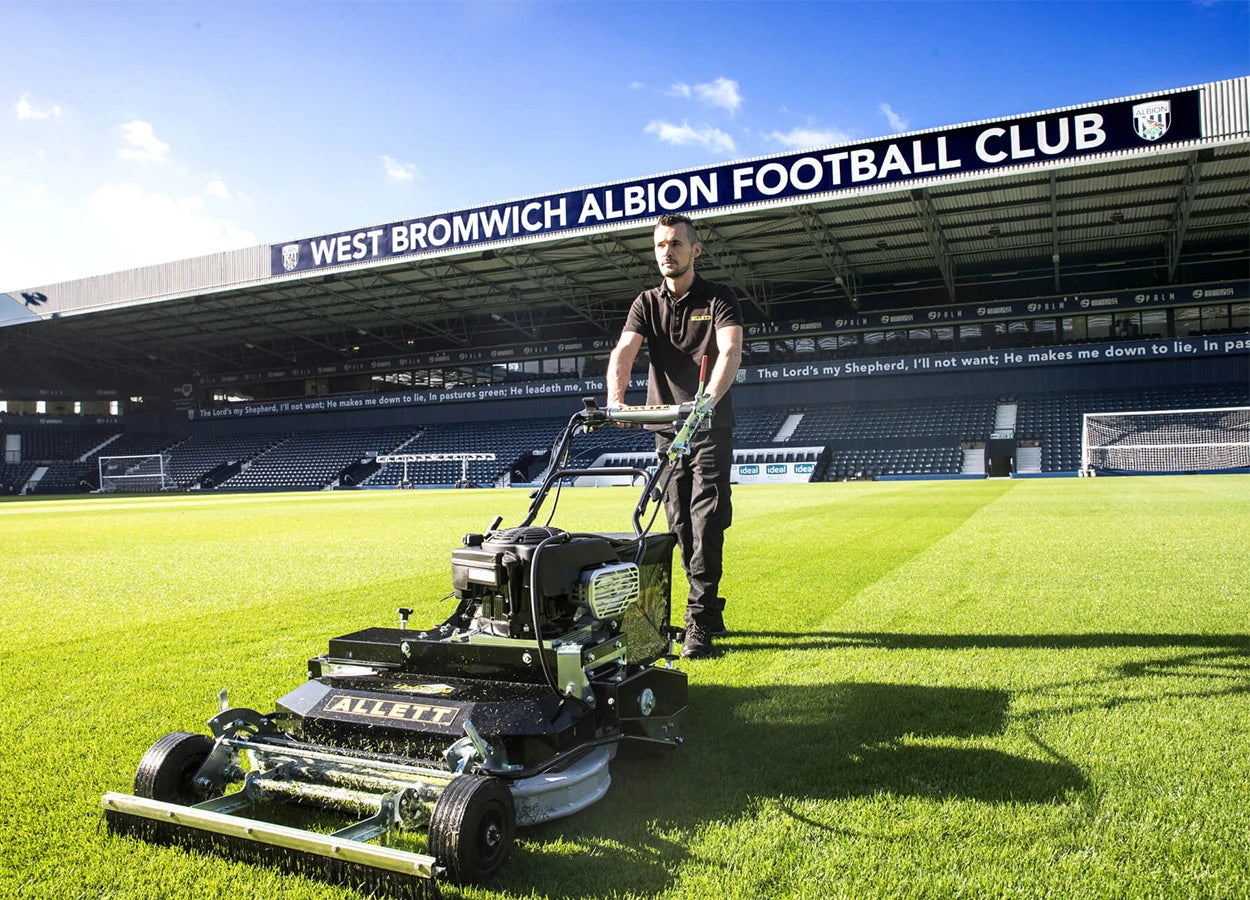

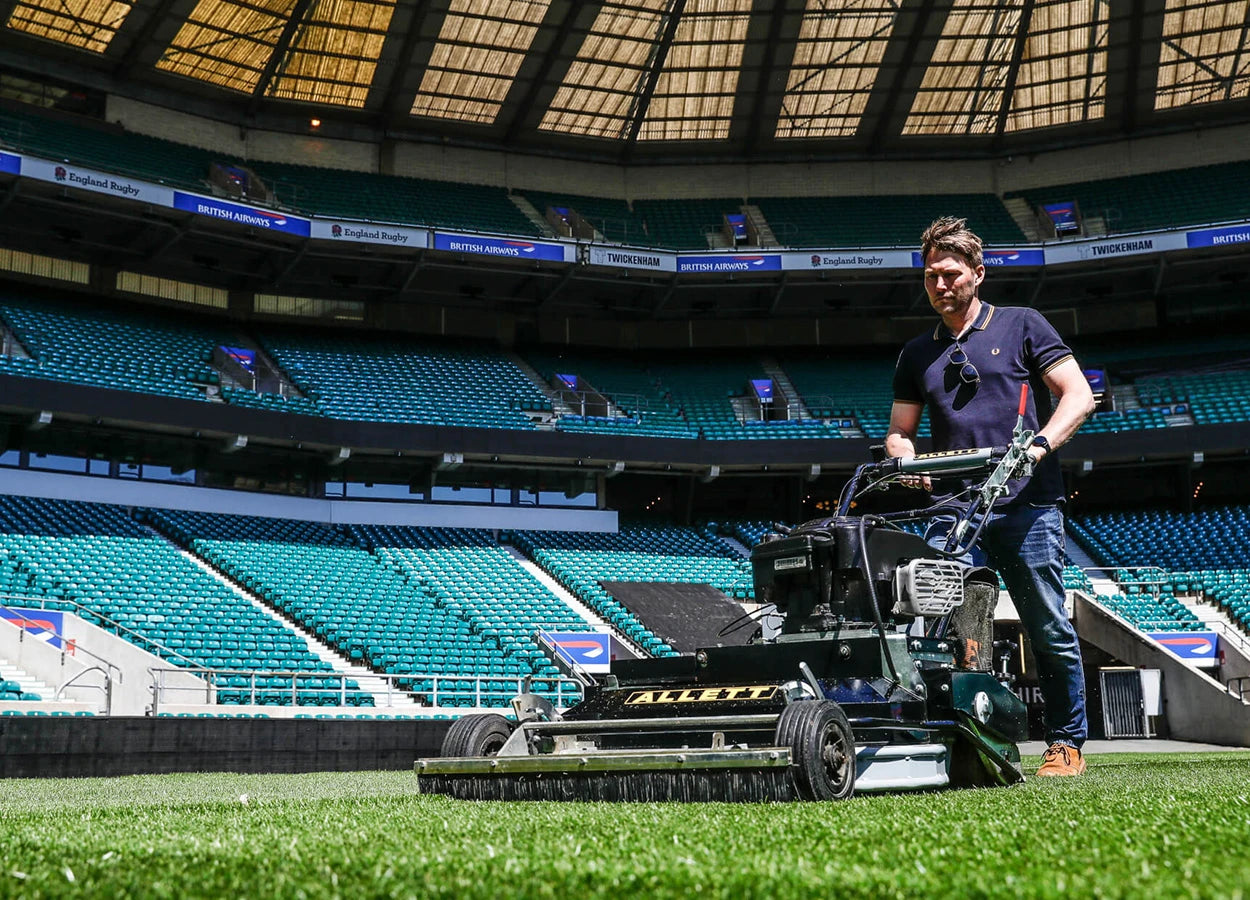

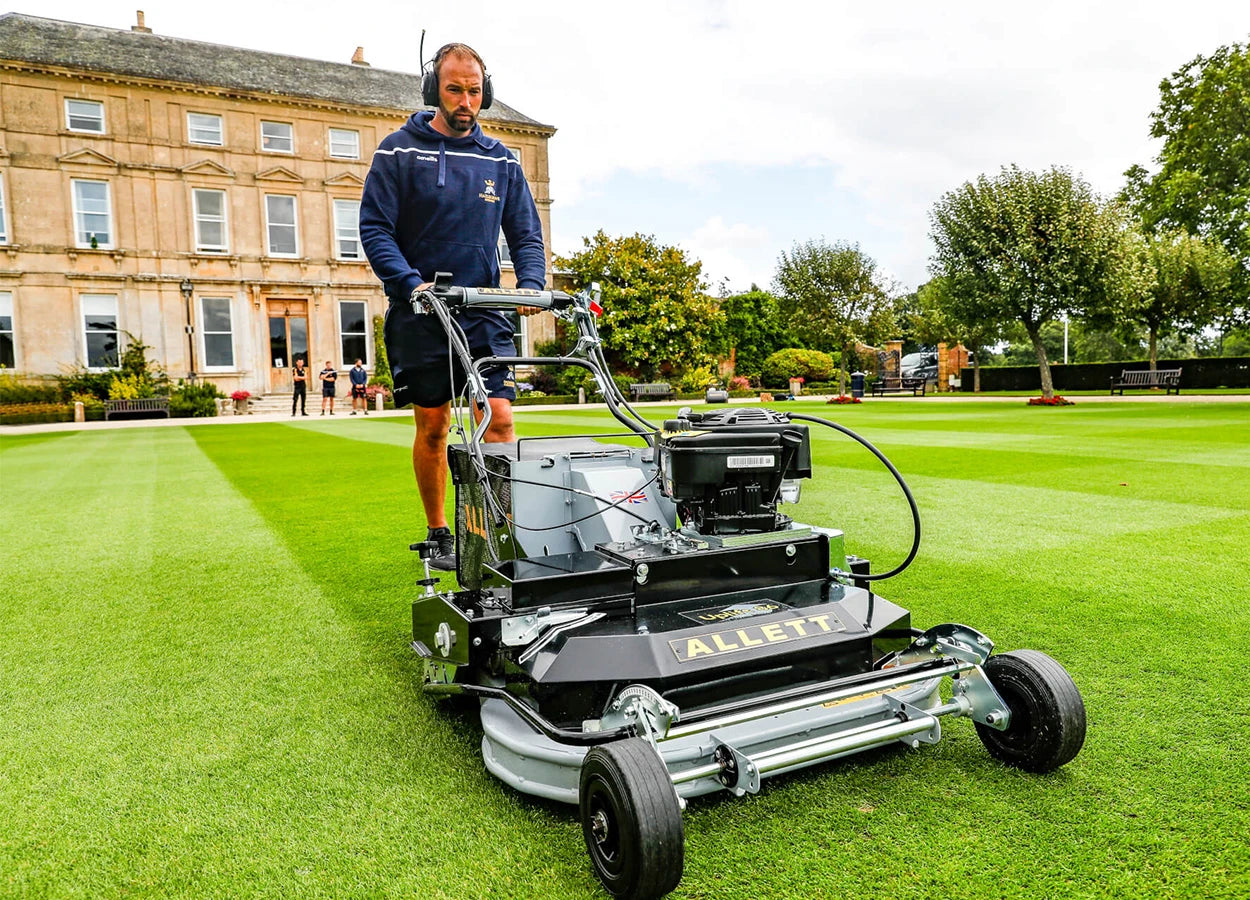

Uplift 86 VACUUM STADIUM ROTARY MOWER

The Allett Uplift 86 is built on the experience gained with previous models, and the feedback of groundsmen, to create an 86cm/34” solid and dependable stadium rotary mower. Twin contra rotating blades produce a high lift cut and vacuum for increased efficiency while a full width rear roller produces the most perfect stripes.
Ideal for debris collection after matches, the Uplift 86 features a five speed heavy-duty gearbox which allows the operator to select a comfortable forward speed with greater control in small, intricate areas. Higher speed selection, up to 6.7km/h (4.2mph), quickly covers large areas for increased efficiency.
Reliability and durability are inbuilt in the Uplift 86 with chain self tensioning, bearing protection and solid front tyres running on bronze bushes. The cutting height is completely variable from 1.5cm to 7.5cm (0.59in – 2.3in) with a steel fabricated cutter deck and three piece, full width, steel roller making this a tough, robust and versatile mower.
• 86cm (34”) cut width
• Twin bladed high lift vacuum system designed for
debris collection after matches

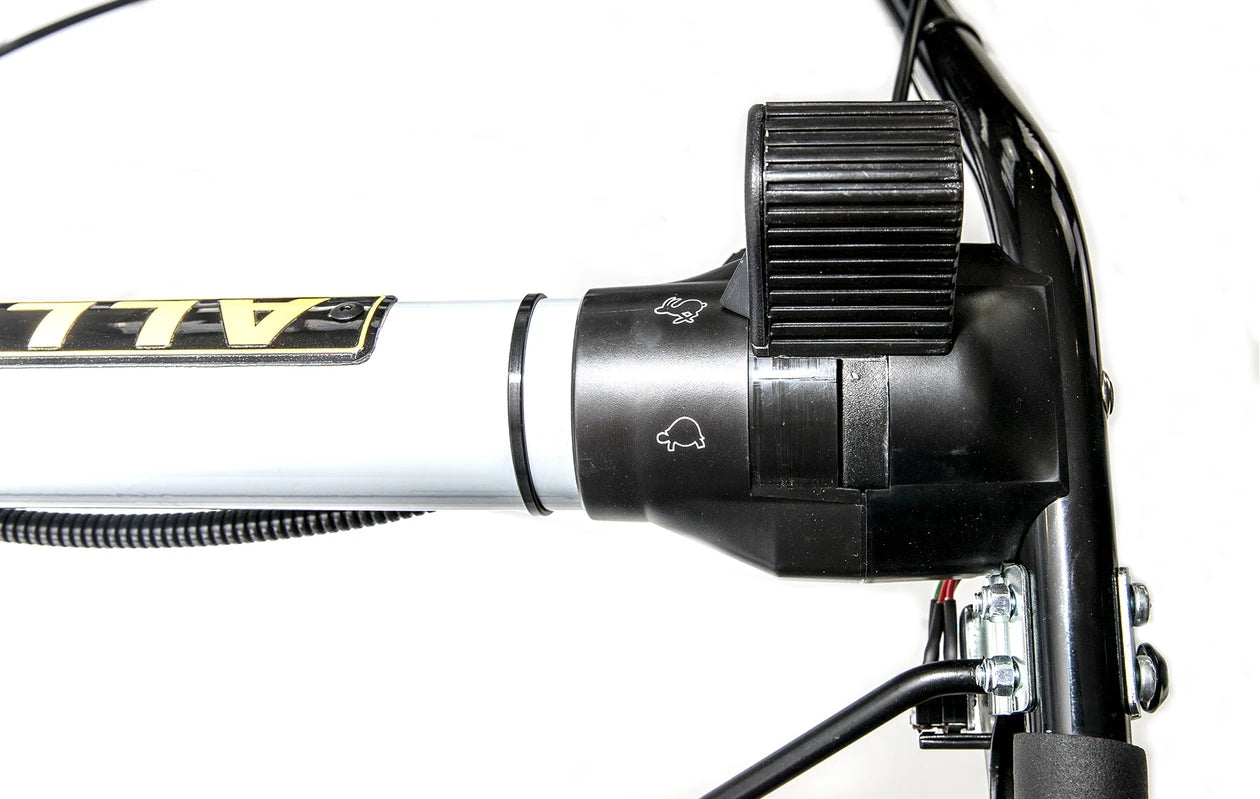

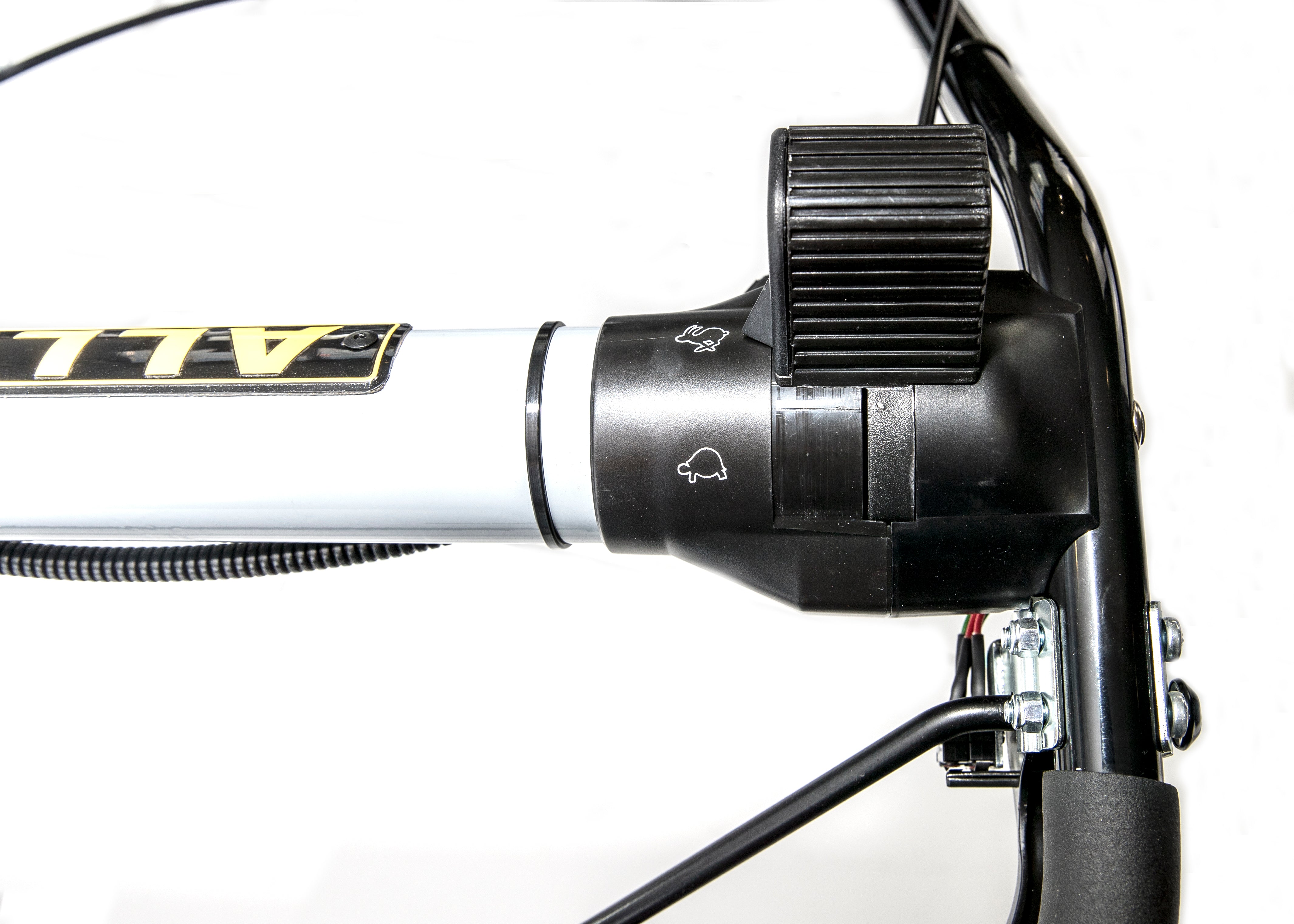

• 5 speed gearbox

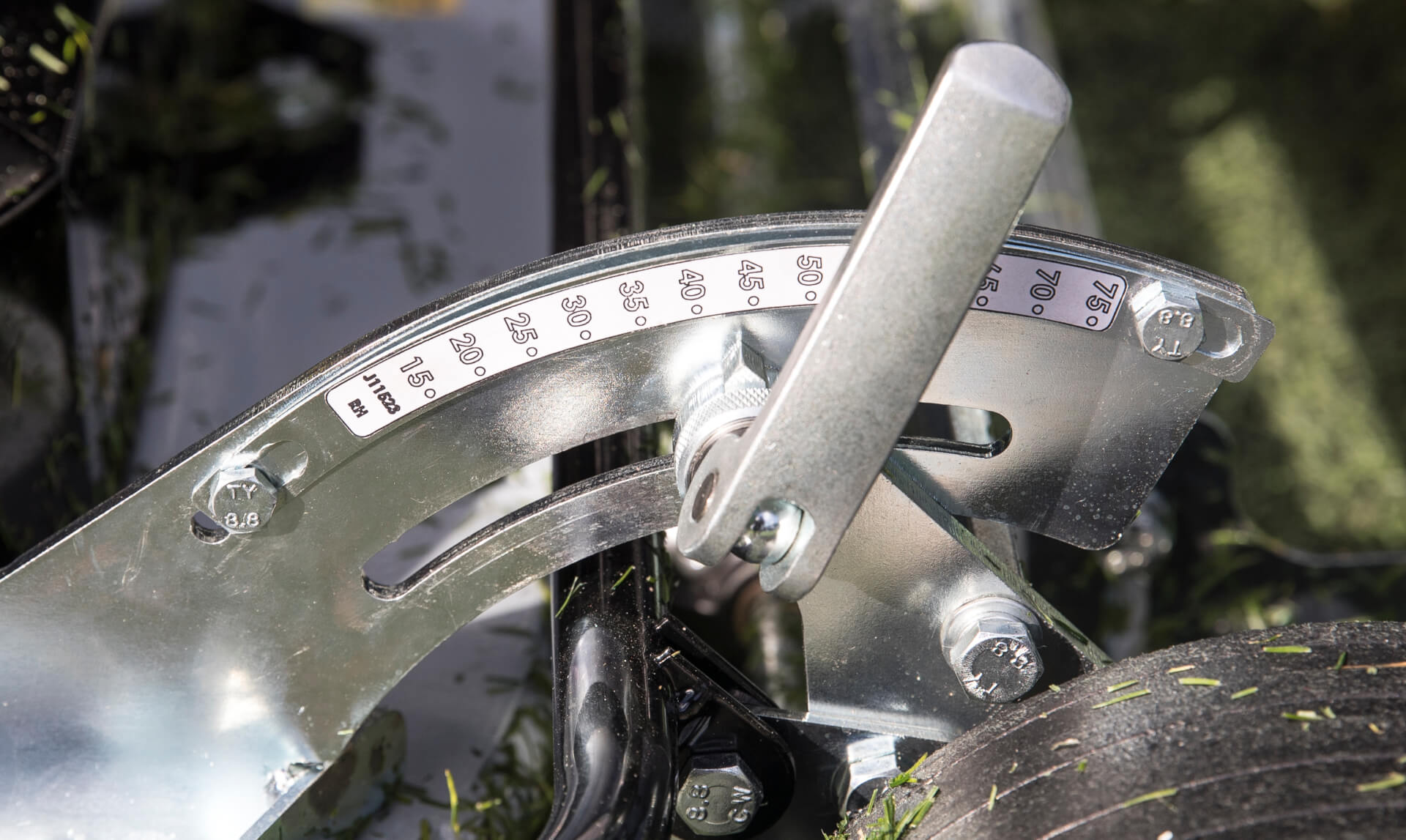

• Cutting height- 1.5-7.5cm (0.59in-2.3in) – Micro
height adjustment

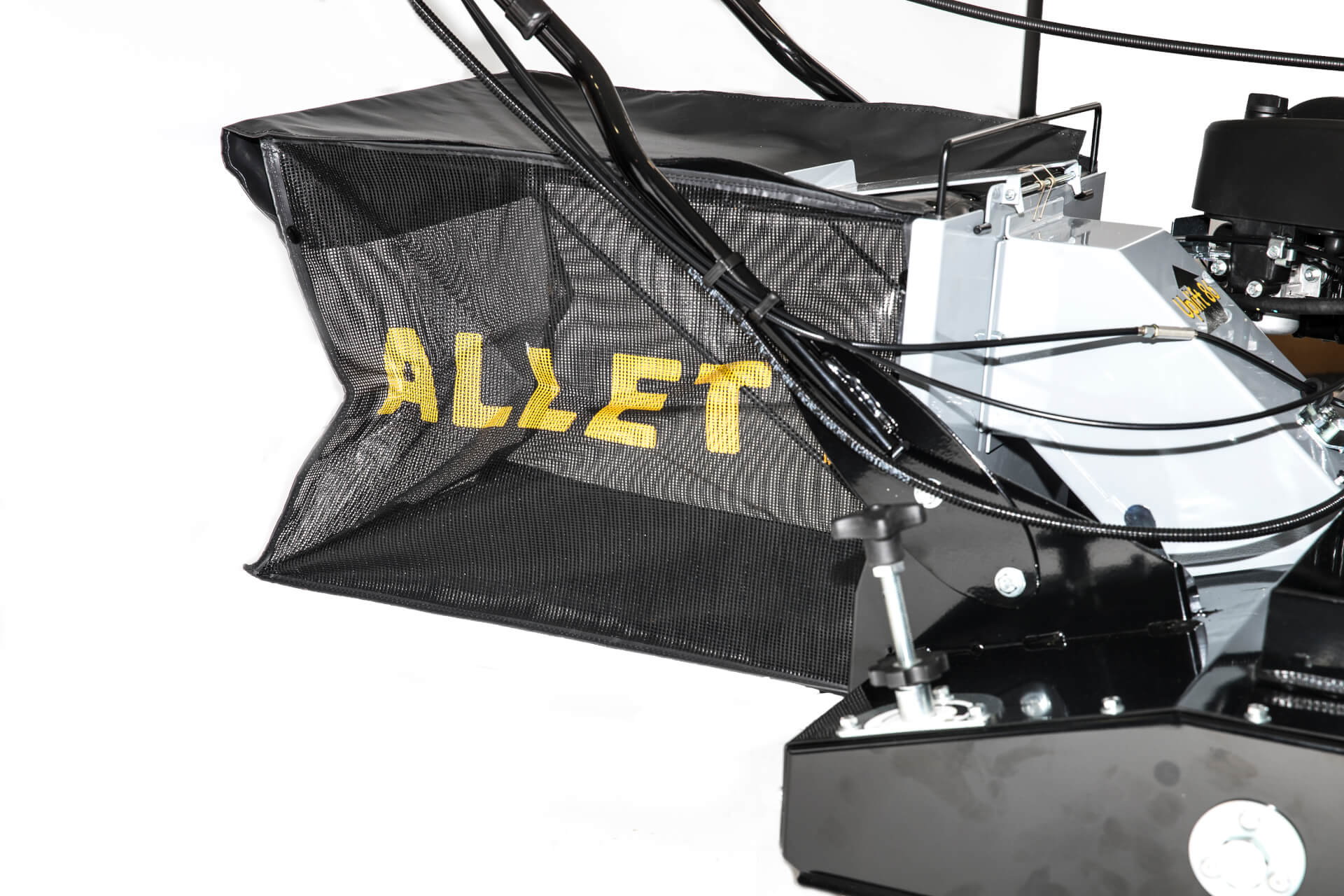

• 90 litre grass collector

Uplift 86 VACUUM STADIUM ROTARY MOWER

The Allett Uplift 86 is built on the experience gained with previous models, and the feedback of groundsmen, to create an 86cm/34” solid and dependable stadium rotary mower. Twin contra rotating blades produce a high lift cut and vacuum for increased efficiency while a full width rear roller produces the most perfect stripes.
Ideal for debris collection after matches, the Uplift 86 features a five speed heavy-duty gearbox which allows the operator to select a comfortable forward speed with greater control in small, intricate areas. Higher speed selection, up to 6.7km/h (4.2mph), quickly covers large areas for increased efficiency.
Reliability and durability are inbuilt in the Uplift 86 with chain self tensioning, bearing protection and solid front tyres running on bronze bushes. The cutting height is completely variable from 1.5cm to 7.5cm (0.59in – 2.3in) with a steel fabricated cutter deck and three piece, full width, steel roller making this a tough, robust and versatile mower.
• 86cm (34”) cut width
• Twin bladed high lift vacuum system designed for
debris collection after matches
• 5 speed gearbox
• Cutting height- 1.5-7.5cm (0.59in-2.3in) – Micro
height adjustment
• 90 litre grass collector

shadow

Photos and Videos

View Specification

Are you interested in this product? Find the product specification table below
view spec

Make an Enquiry

Are you interested in finding out more information on this product? Get in touch with us at Allett today!

make enquiry

View Accessories

Find all the accessories that are designed to help you get the very best out of you Allett machine. Precision engineered, they offer a perfect fit and are very easy to attach.

View All Accessories

Find Your Local Dealer

View Our Dealerships

Online Brochure

Find online brochures for all the Allett products here

View brochure

Find a Dealer

Find your local Allett dealer here using our Dealer Locator.

Find Nearest Dealer

Contact us

Contact us today to begin your journey to getting a beautifully striped lawn or sports field

Contact Us Today!
 Uplift 86 Vacuum Stadium Rotary Mower Specification
TypeTwin Blade Rotary Mower with rear roller
Speed5 speed gearbox: 1st 1.9km/h (1.2mph); 2nd 3.0km/h (1.9mph); 3rd 4.5km/h (2.8mph); 4th 5.7km/h (3.6mph); 5th 6.7km/h (4.2mph)
Cut Width34” Cut Width (860mm)

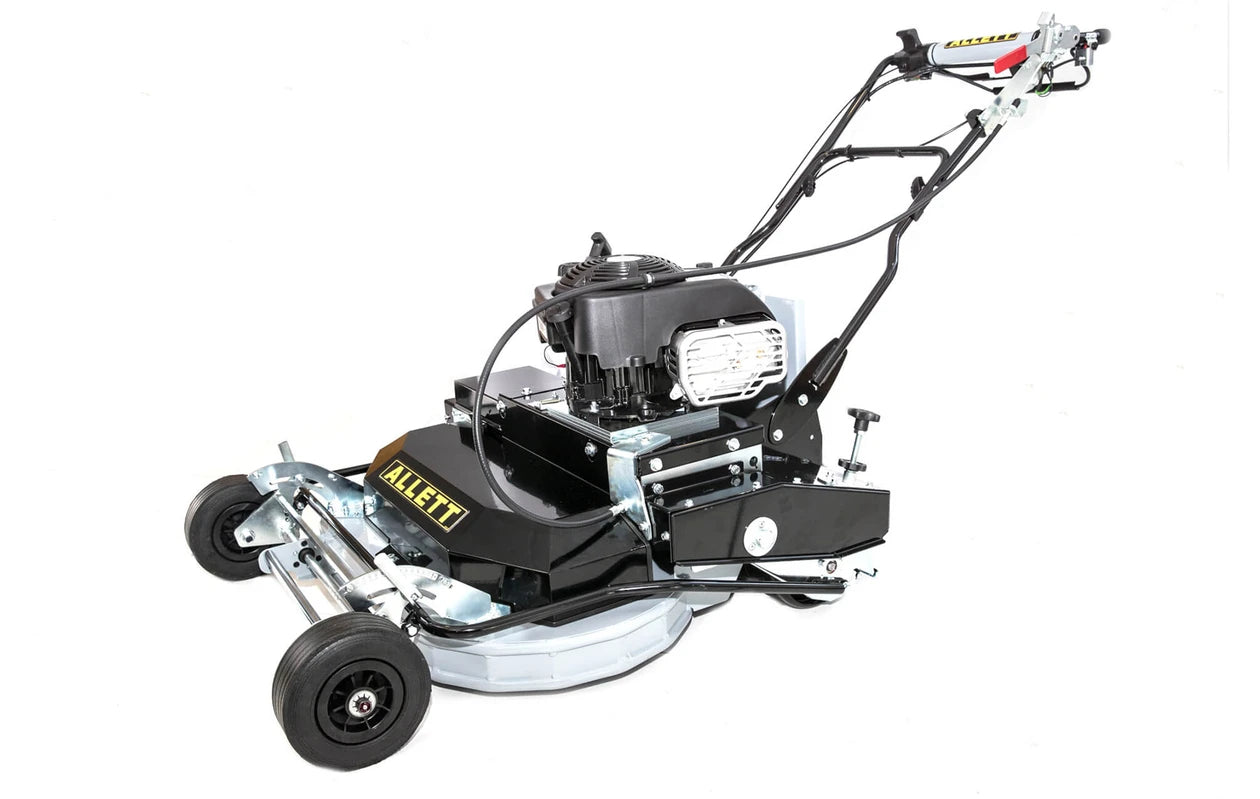

Engine223cc Briggs and Stratton® 950E vertical crankshaft engine featuring “ReadyStart” ®. Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)

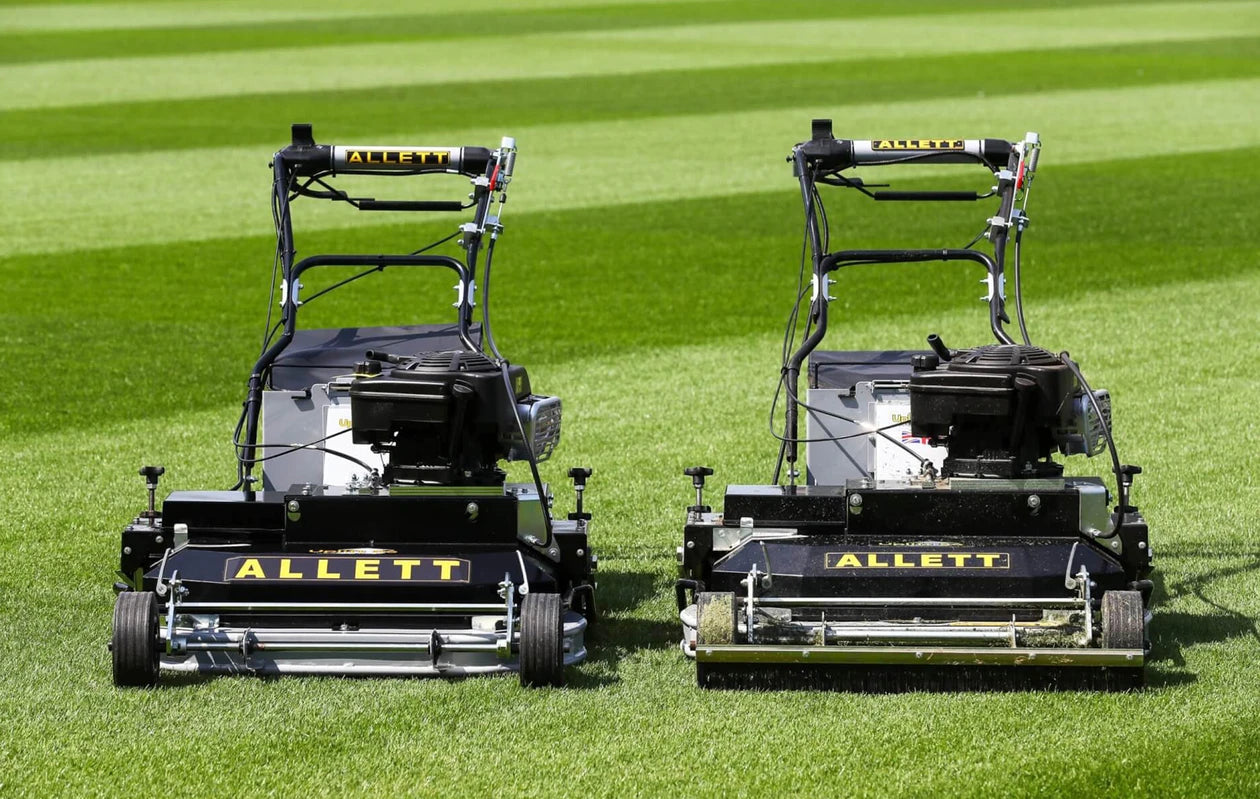

Cutting Height15-75mm HOC completely variable

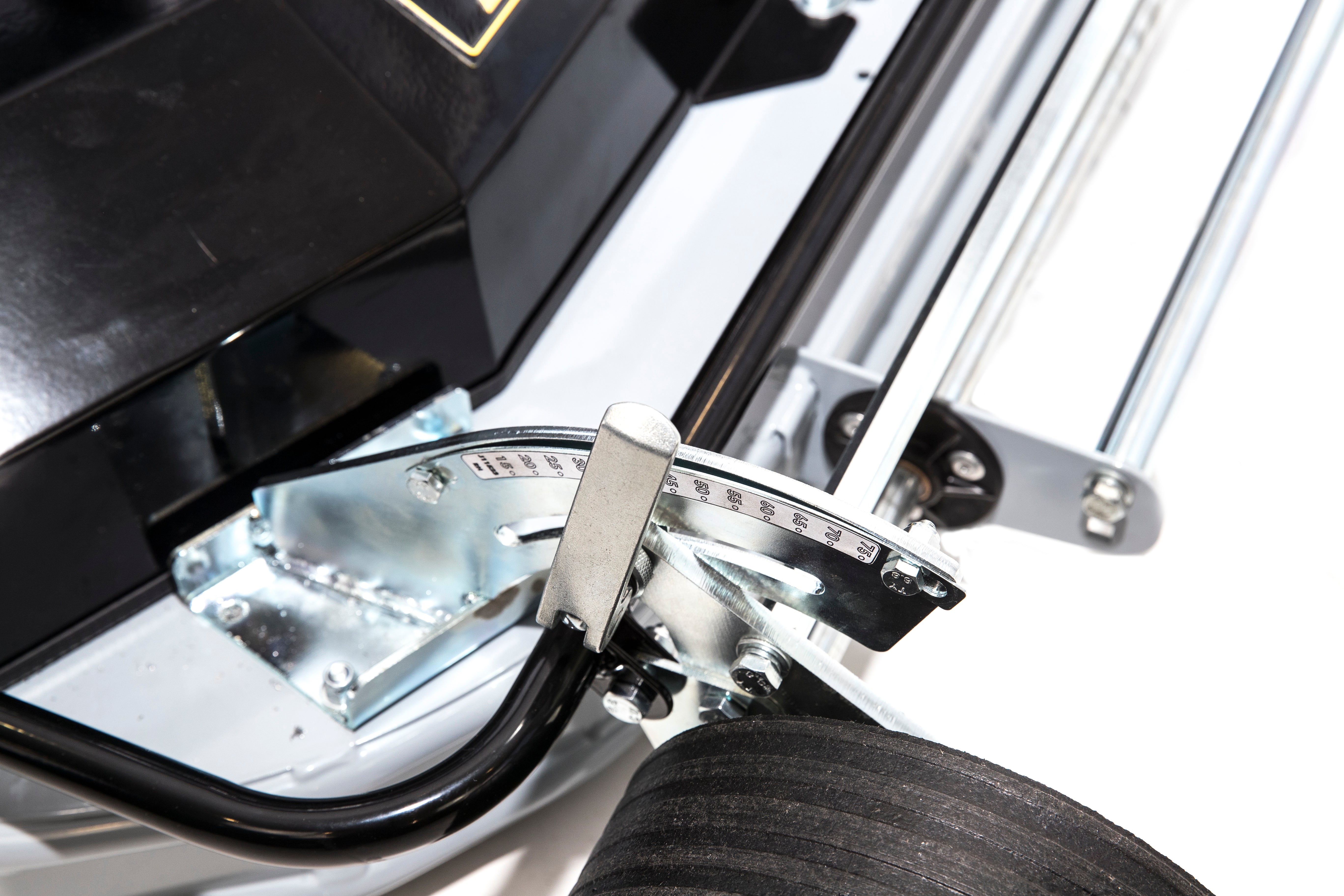

Height of Cut Adjustment 2 point micro height adjusters with front wheel height of cut security locking

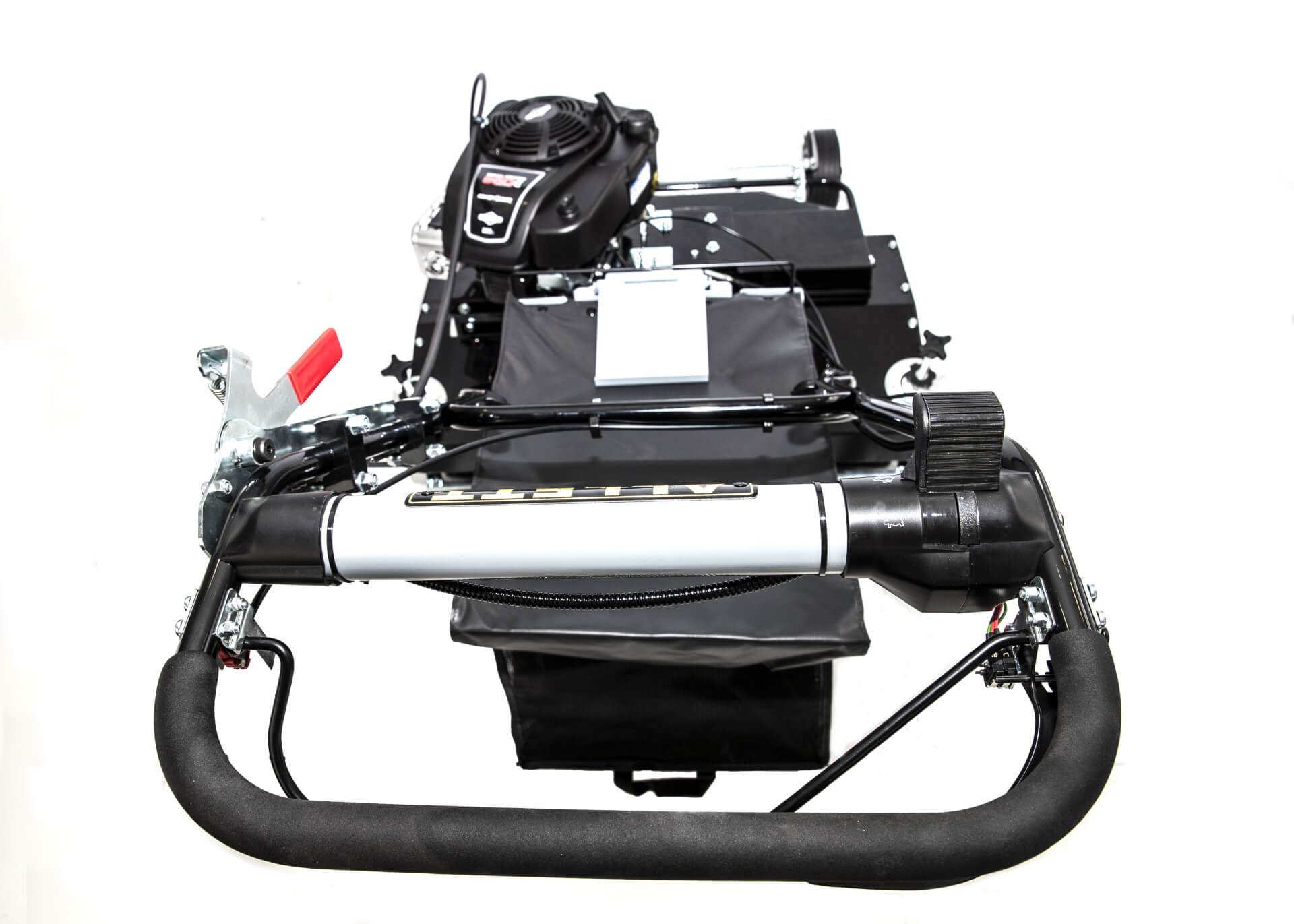

HandlesAdjustable for operator comfort

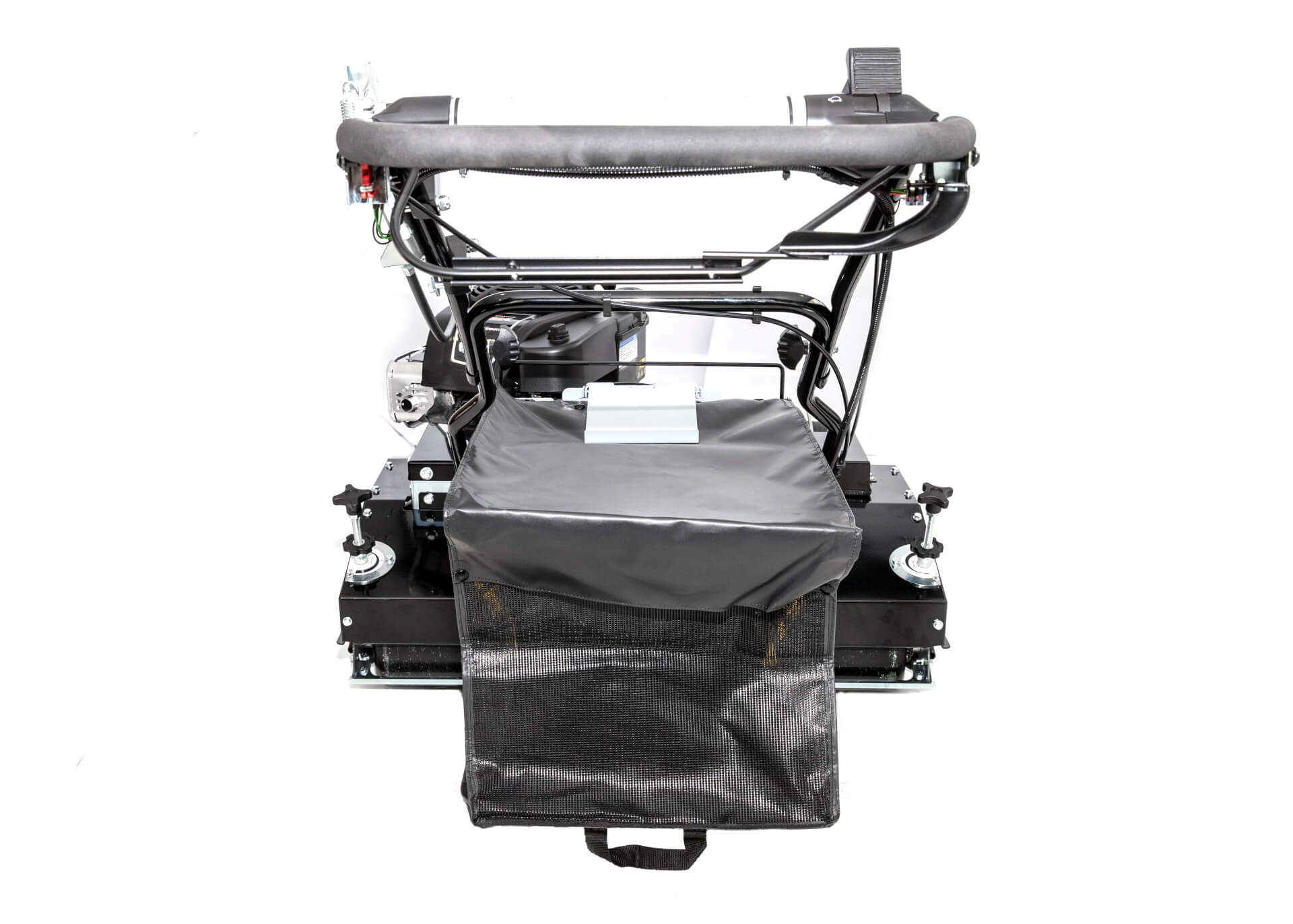

Grassbox90 litres

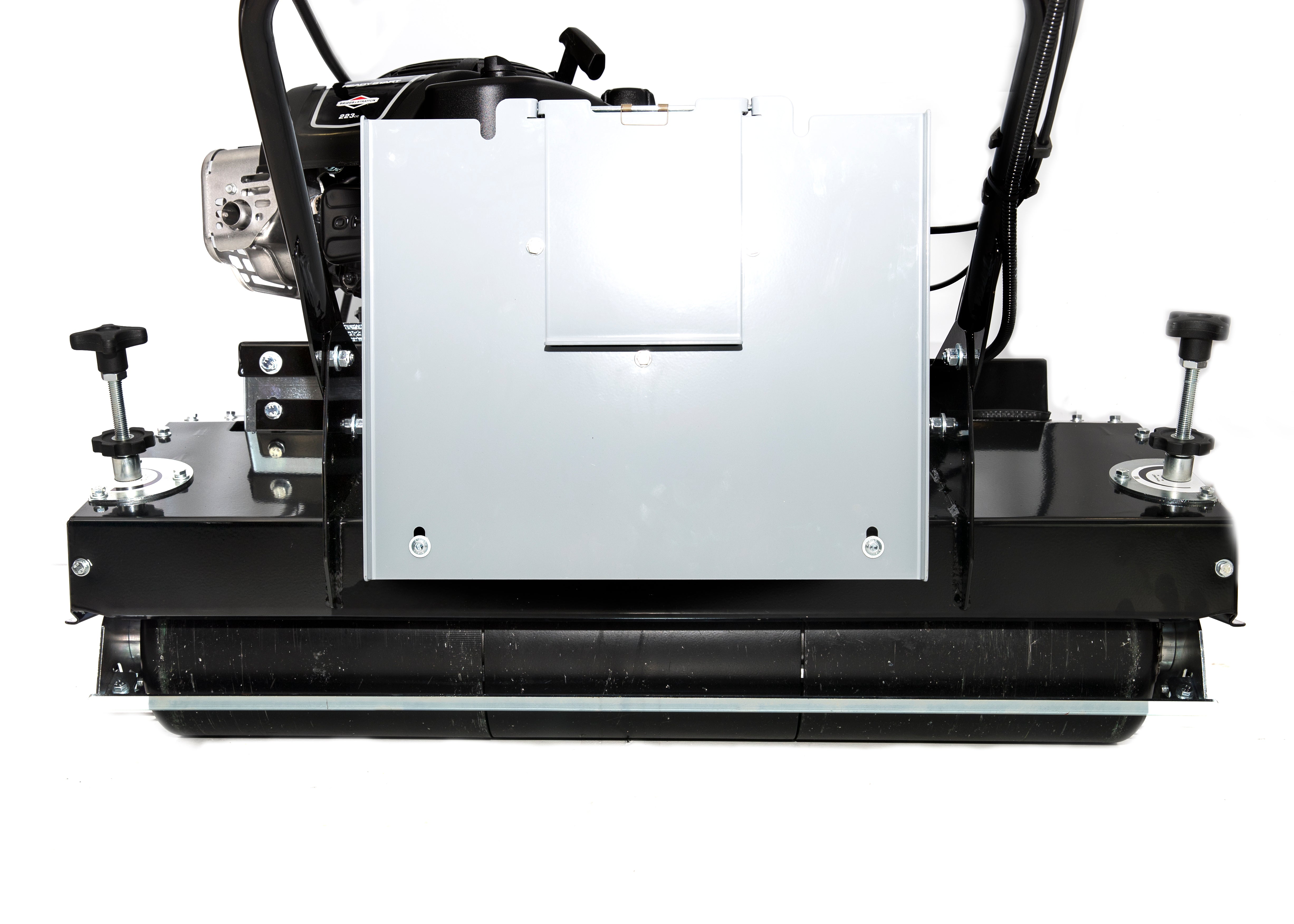

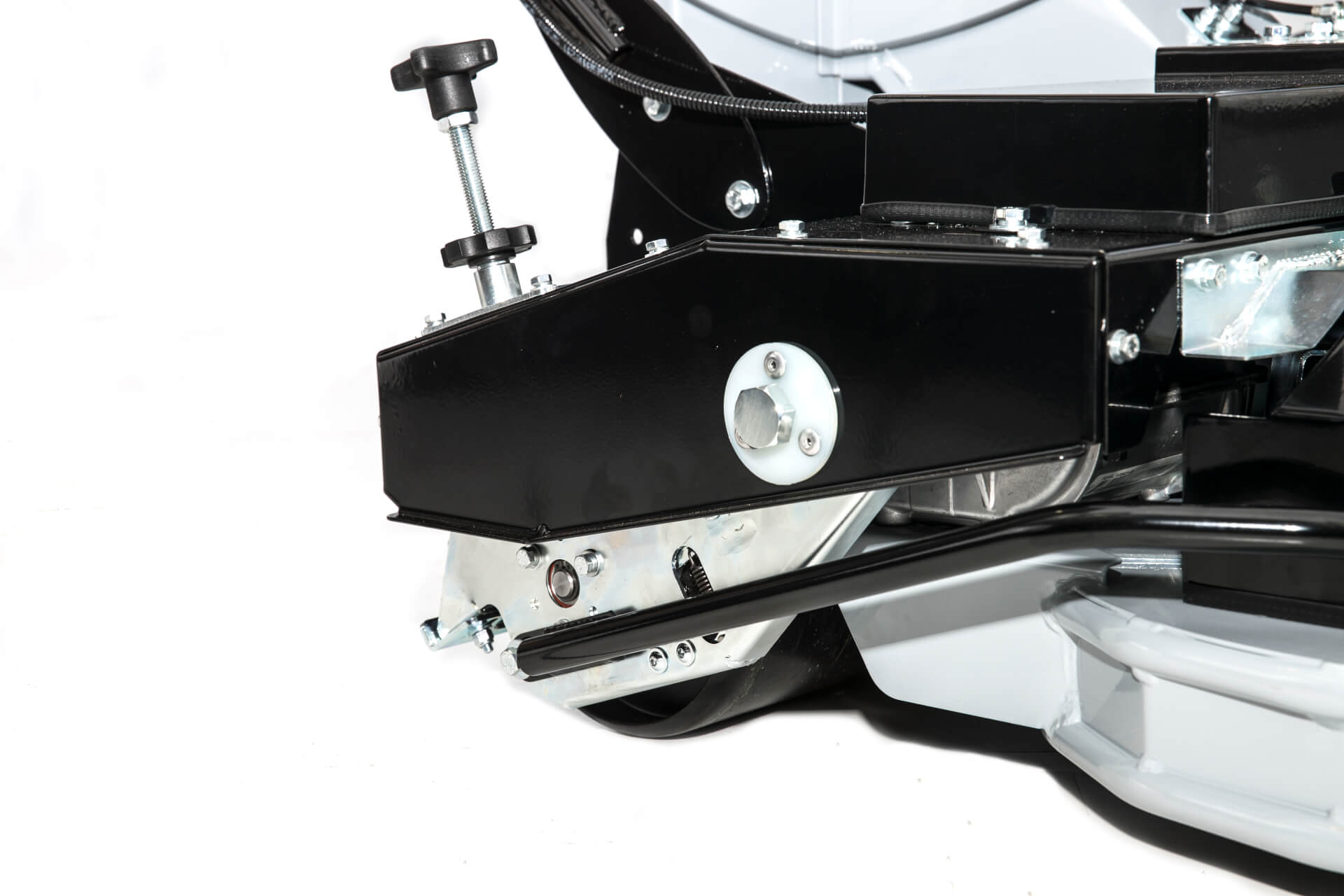

Rear roller3 piece steel, full width rear roller with differential
Drive Motors5 speed heavy duty gear box with cast Aluminium housing and steel gears
Product OverviewSpecifically developed with and for Stadium Groundsmen. The twin-bladed, high-lift system cuts and vacuums quickly and efficiently to give the busiest grounds-team massive capacity to clean-up after matches or mow higher during grow-in.

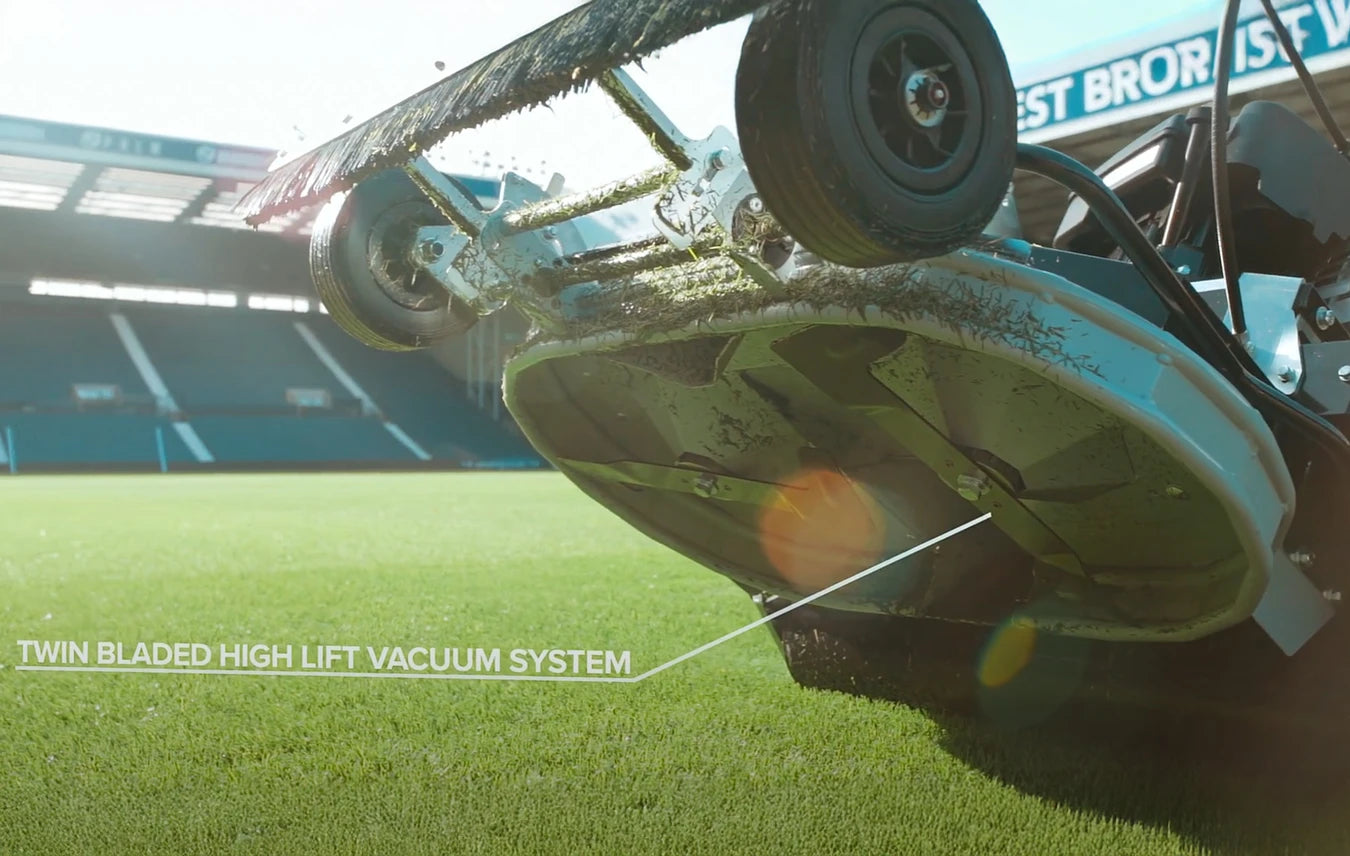

Blade System2 x 18” high lift blades, contra rotating and timed producing high volume air flow
Blade Drive Separate bail bar for roller drive & blades allows 3 modes 1) Roller drive only, 2) Blades only or 3) Roller drive and Blades. Belt drive to spindle. Blade brake clutch (operator presence controls)
Safety BreakingYes
Cutting Deck ConstructionSteel fabricated
Dry Weight122 kg
Fuel Tank Capacity1.1 litre
Overall MeasurementsHeight 940mm Width 950mm Length - 2000mm
Noise Value100db maximum guaranteed noise level Speed - 5 speed gearbox: 1st 1.9km/h (1.2mph); 2nd 3.0km/h (1.9mph); 3rd 4.5km/h (2.8mph); 4th 5.7km/h (3.6mph); 5th 6.7km/h (4.2mph)

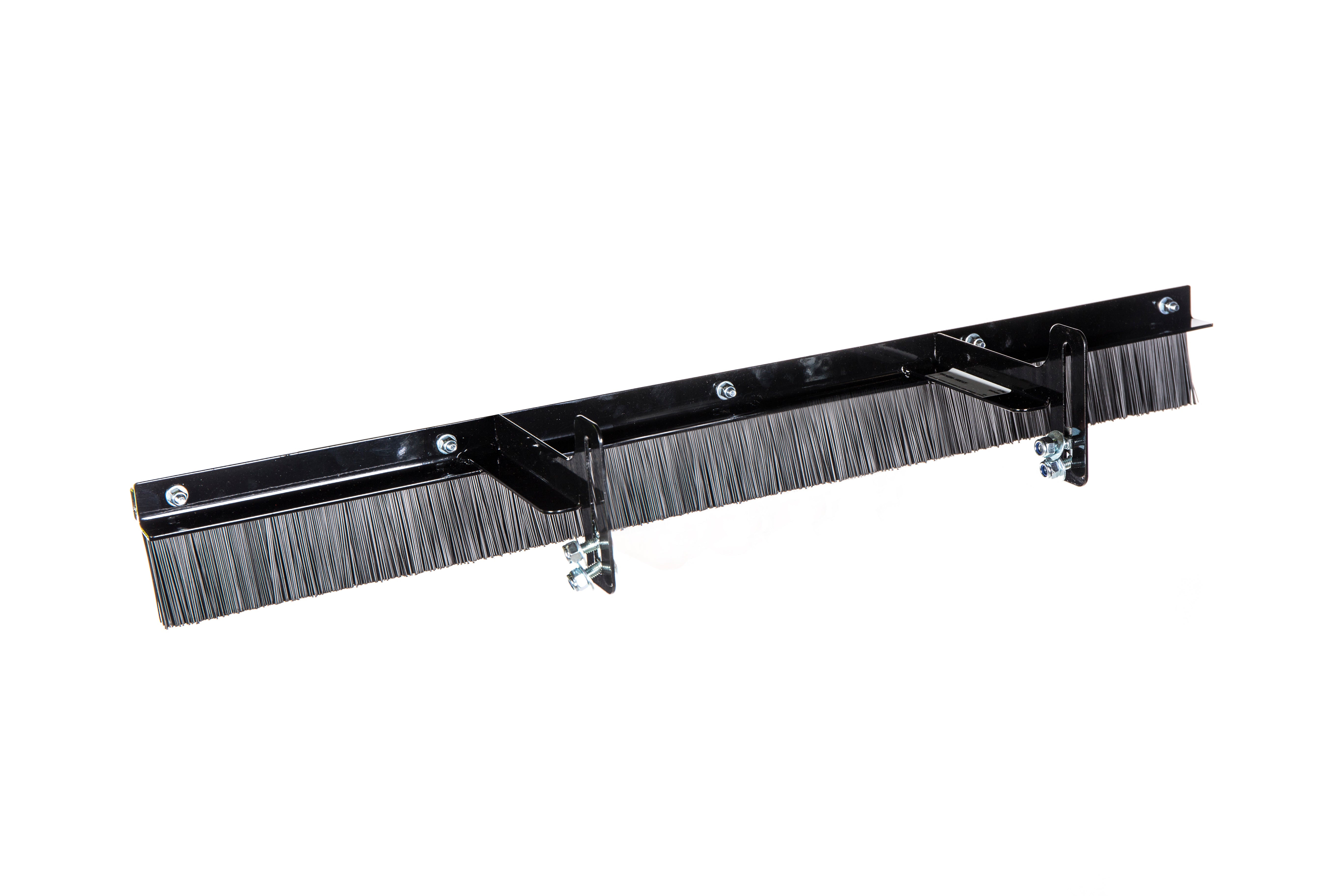

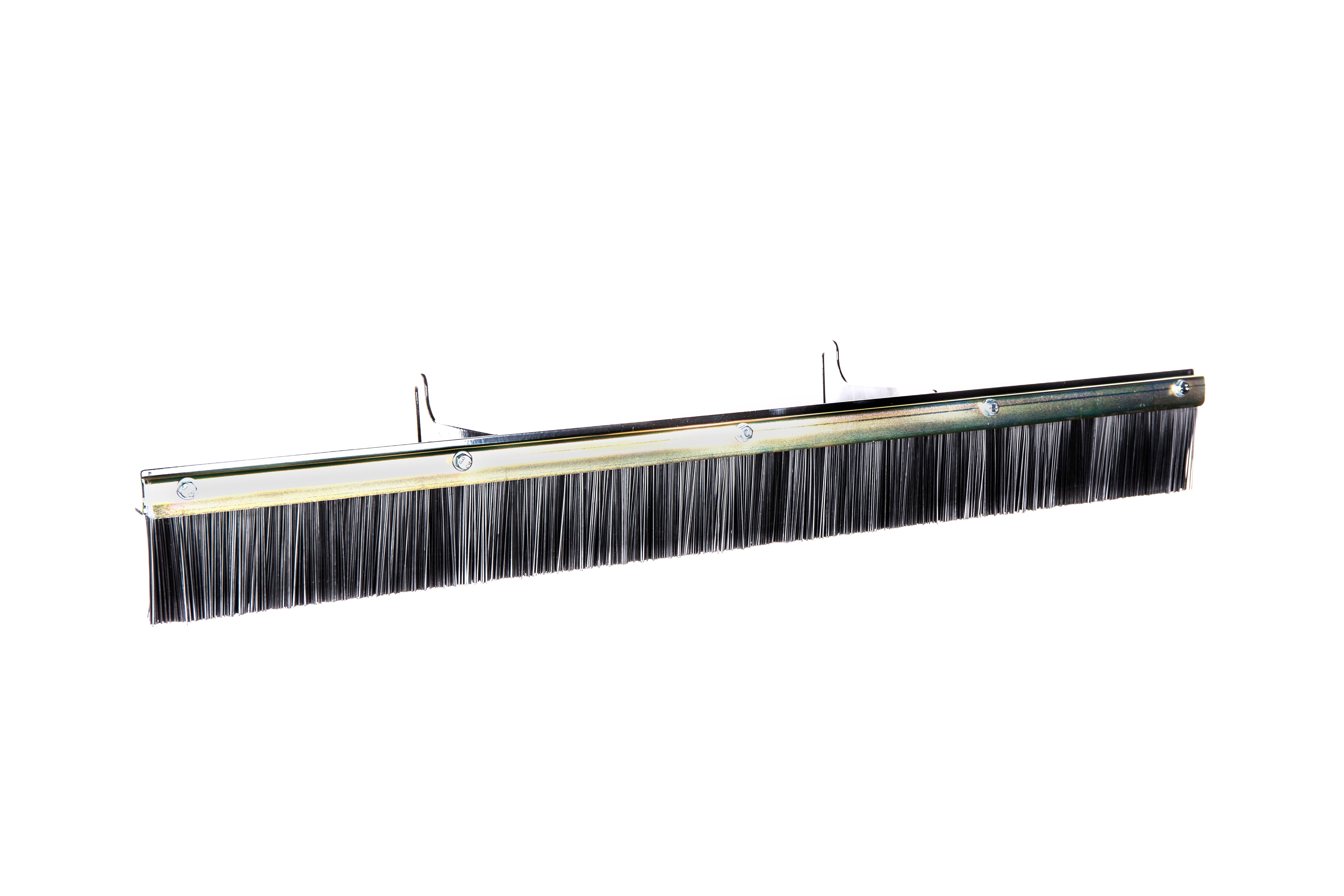

Optional ExtrasUPLIFT 86B fixed strip brush for Uplift 86 (soft, medium or hard bristle)

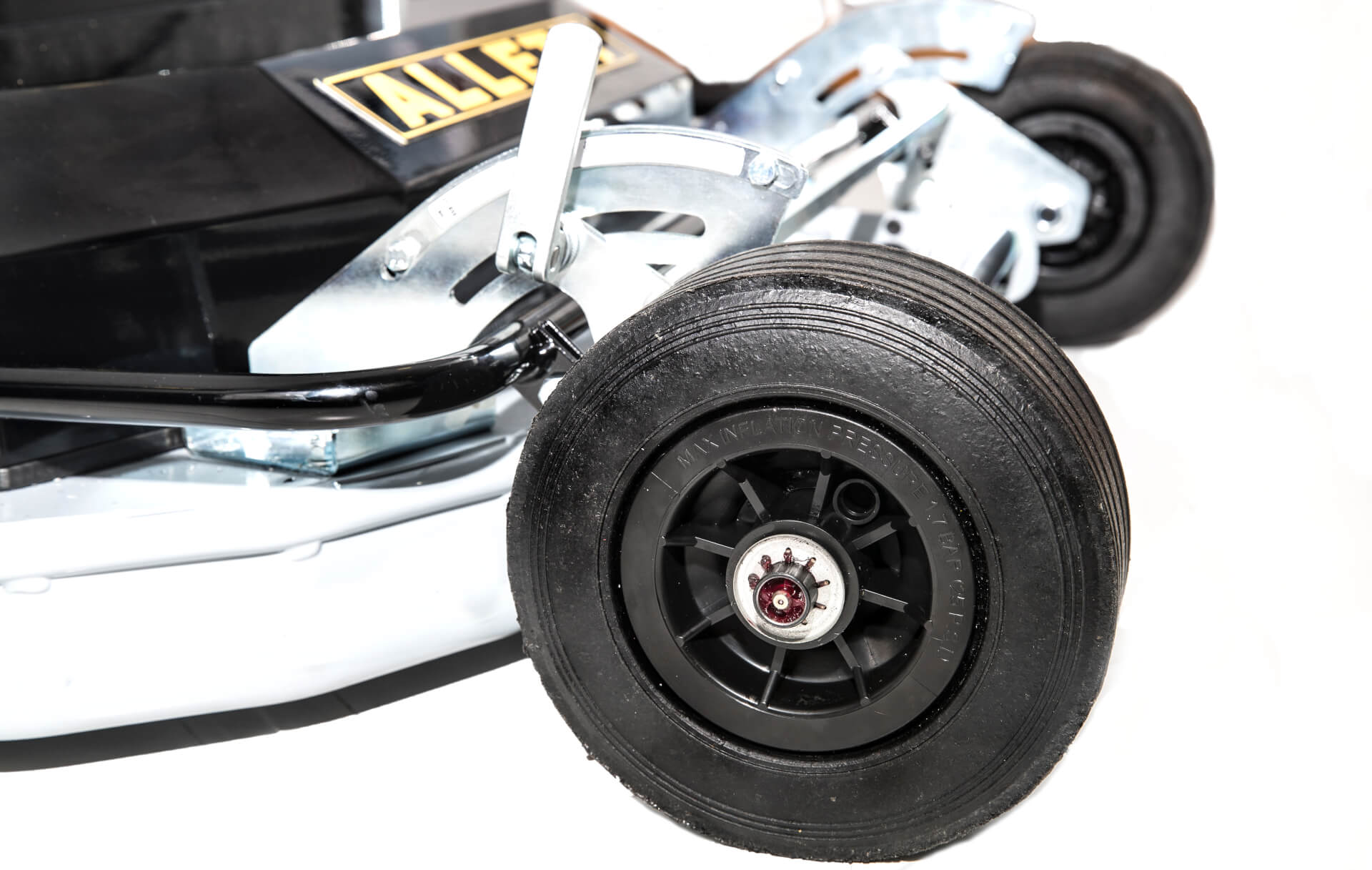

Front Wheels200mm (20cm) diameter solid front wheels running on bronze brushes (greasable)
Overall Dimensions Width: 940mm (94cm/37in) Height: 950mm-1080mm (95cm-108cm/37-43in) Length: 2000mm (200cm/79in)
